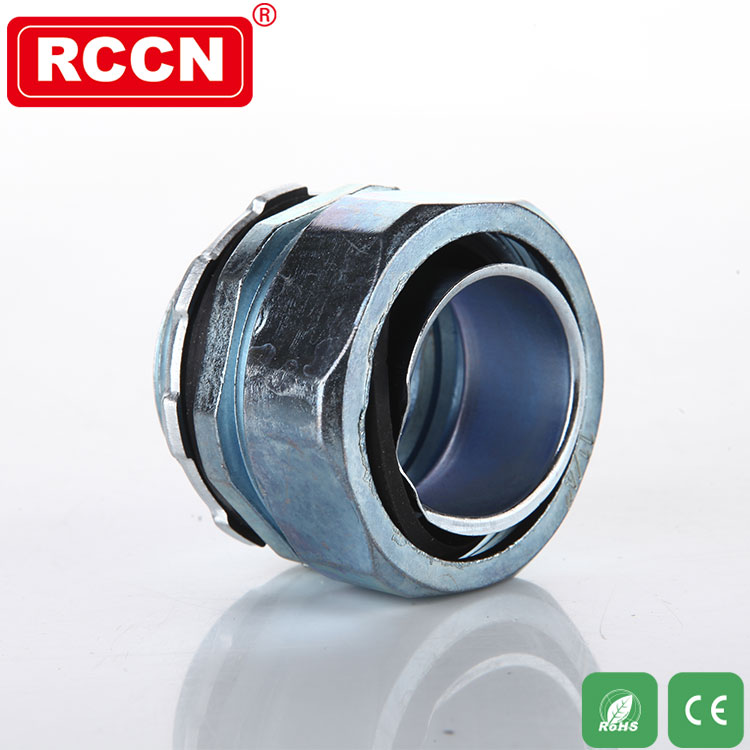

金屬軟管接頭,軟管接頭

螺牙規格:管螺紋G/PF牙,公制螺紋Metric,德制螺紋 PG

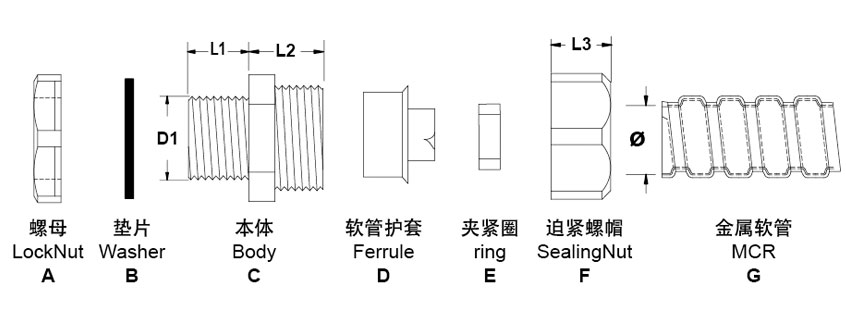

產品材質:A.C.F部位優質加厚型鋅合金制成.B.E丁腈橡膠(NBR)制成.D鐵皮制成.
產品認證:歐洲CE,歐洲環保RoHS? /? 顏色:金屬色(銀白色)?? /?? 防護等級:IP54
工作溫度:-40°C至100°C,瞬間可耐熱達120°C.
產品特性: 1.加厚型鋅合金鍍鋅或硬鉻,外型美觀,結構緊密,強度高.
??????????????? 2.軟管護套設計與軟管相扣接緊之設計,配合迫緊頭裝配省時便利,抗拉力特強,
??????????????? 3.可防水、防塵、抗鹽、耐酸堿、酒精、油、脂及一般溶劑.
??????????????? 4.除以下標準規格外,可另按需求任意變動大小及螺紋標準.
備?????? 注:成品均配帶螺母A及防水墊片B可定制特殊規格不同的螺紋和配套和管

型號 Item?No.	螺牙標準 Thread G/M/PG	配套日成金屬軟管 MCR			螺紋外徑 Thread?? O.D.	螺紋長度 Thread? Length	接合長度 Joint? Length	包裝? Packing?? pcs


鋅合金		對應型號	公制	英制	D1	L1	L2+L3
管螺紋?NBG-G
NBG-01G	G1/4"	MCR-01	6	3/16"	13.2	8	16	100
NBG-02G	G1/4"	MCR-02	8	5/16"	13.2	8	16	100
NBG-03G	G3/8"	MCR-03	10	1/4"	16.5	8	17	100
NBG-04G	G3/8"	MCR-04	13	3/8"	16.5	8	18	100
NBG-05G	G1/2"	MCR-05	16	1/2"	21.3	11	23	100
NBG-06G	G3/4"	MCR-06	20	3/4"	26.6	14	22	50
NBG-08G	G1"	MCR-08	25	1"	33.4	15	28	50
NBG-10G	G1?1/4"	MCR-10	32	11/4"	42.1	15	30	25
NBG-12G	G1?1/2"	MCR-12	38	11/2"	47.8	16	32	25
NBG-16G	G2"	MCR-16	51	2	59.6	18	34	10
NBG-20G	G2?1/2"	MCR-20	64	21/2"	75.1	22	38	10
NBG-24G	G3"	MCR-24	80	3"	87.8	22	46	5
NBG-32G	G4"	MCR-32	100	4"	113	24	50	5
公制螺紋?NBG-M
NBG-01M	M14*1.5	MCR-01	6	3/16"	M14*1.5	8	16	100
NBG-02M	M14*1.5	MCR-02	8	5/16"	M14*1.5	8	16	100
NBG-03M	M16*1.5	MCR-03	10	1/4"	M16*1.5	8	17	100
NBG-04M	M16*1.5	MCR-04	13	3/8"	M16*1.5	8	18	100
NBG-05M	M20*1.5	MCR-05	16	1/2"	M20*1.5	11	23	100
NBG-06M	M25*1.5	MCR-06	20	3/4"	M25*1.5	14	22	50
NBG-08M	M32*1.5	MCR-08	25	1"	M32*1.5	15	28	50
NBG-10M	M40*1.5	MCR-10	32	11/4"	M40*1.5	15	30	25
NBG-12M	M50*1.5	MCR-12	38	11/2"	M50*1.5	16	32	25
NBG-16M	M63*1.5	MCR-16	51	2"	M63*1.5	18	34	10
NBG-20M	M76*2	MCR-20	64	21/2"	M76*2	22	38	10
NBG-24M	M88*2	MCR-24	80	3"	M88*2	22	46	5
NBG-32M	M114*2	MCR-32	100	4"	M114*2	24	50	5
德制螺紋?NBG-PG
NBG-03P	PG9	MCR-03	10	1/4"	15.2	8	16	100
NBG-04P	PG11	MCR-04	13	3/8"	18.6	9	17	100
NBG-05P	PG13.5	MCR-05	16	1/2"	20.4	11	23	100
NBG-06P	PG21	MCR-06	20	3/4"	28.3	14	23	50
NBG-08P	PG29	MCR-08	25	1"	37	15	28	50
NBG-10P	PG29	MCR-10	32	11/4"	37	15	30	25
NBG-12P	PG36	MCR-12	38	11/2"	47	16	32	25
NBG-16P	PG48	MCR-16	51	2"	59.3	18	34	10
