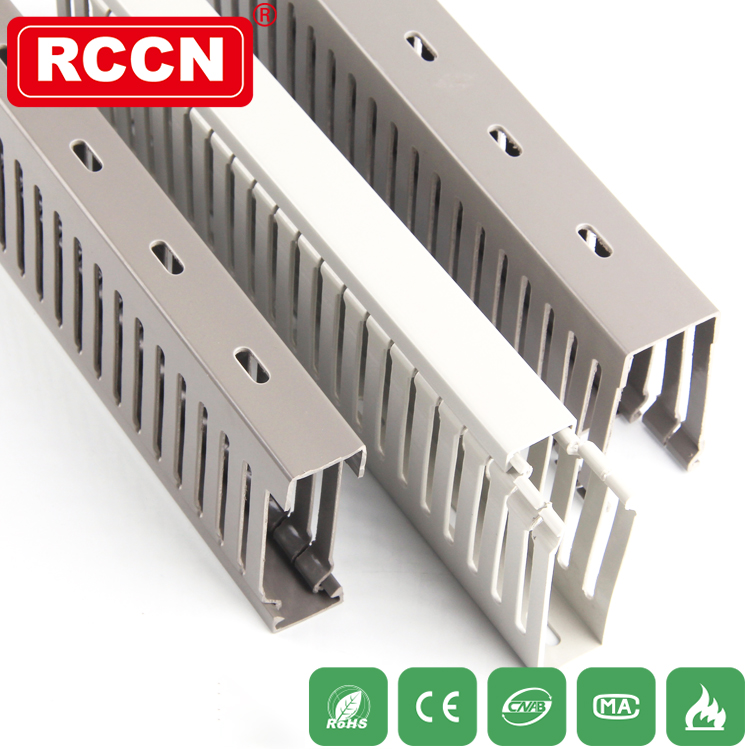

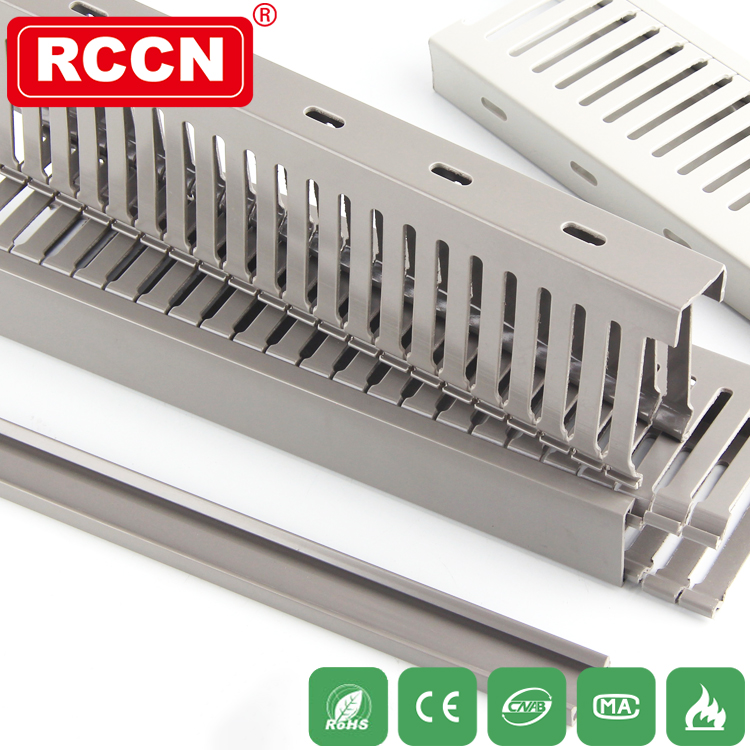

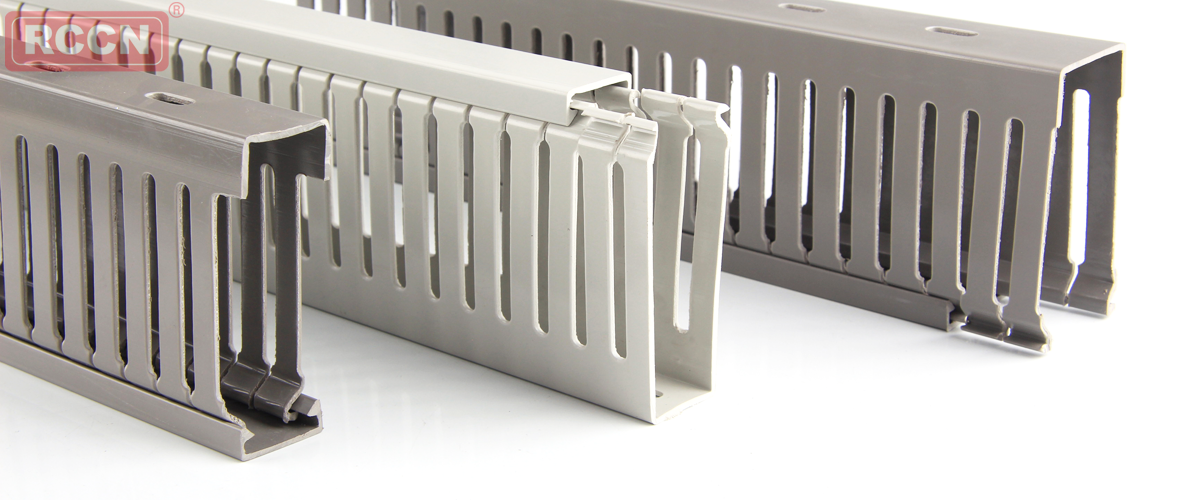

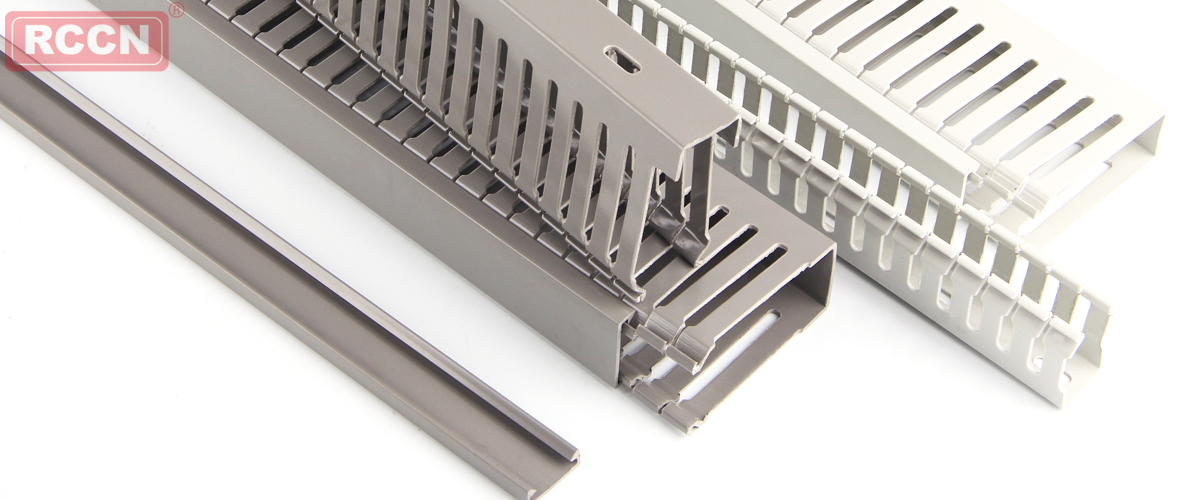

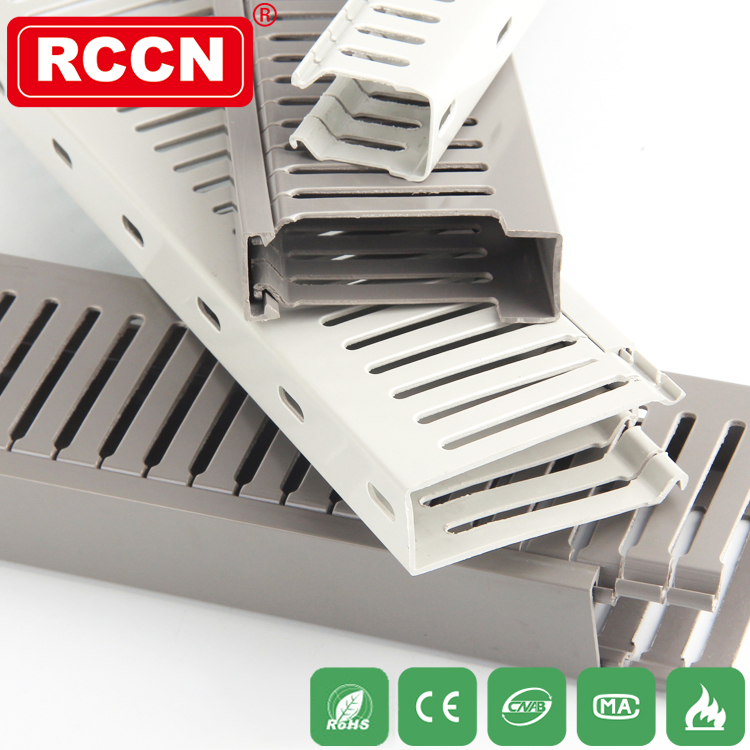

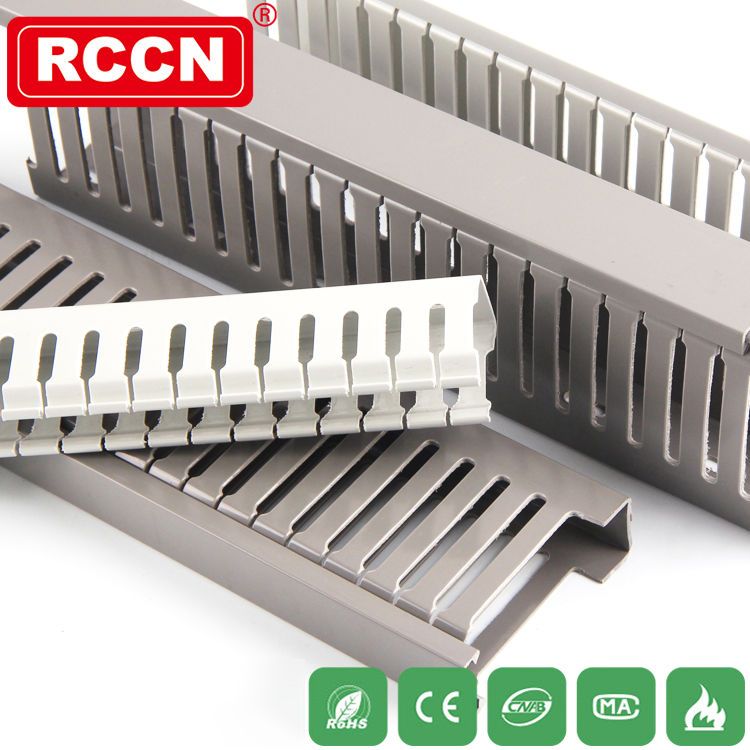

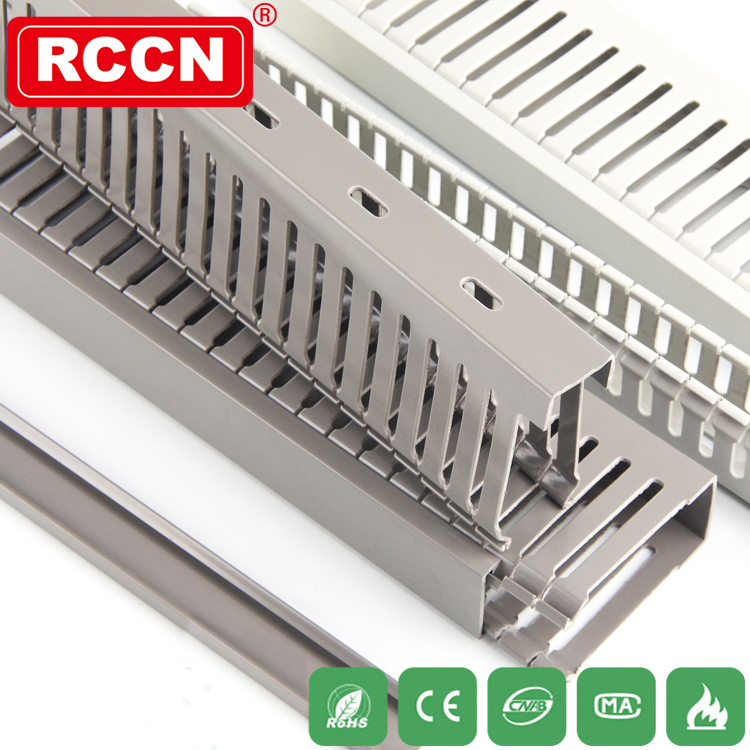

耐高溫?zé)o鹵線槽 HVDRT-HF

細齒無鹵耐高溫線槽老規格線槽

產品材質:采用無鹵素硬質PCABS料制成,環保無污染,不含鉛等有毒物。
產品認證:美國UL 歐洲CE 歐洲環保RoHS,REACH,鐵道阻燃低煙DIN5510。
防火等級:UL94V-0,低煙無鹵,遇火不燃燒,防火性及絕緣性特佳。

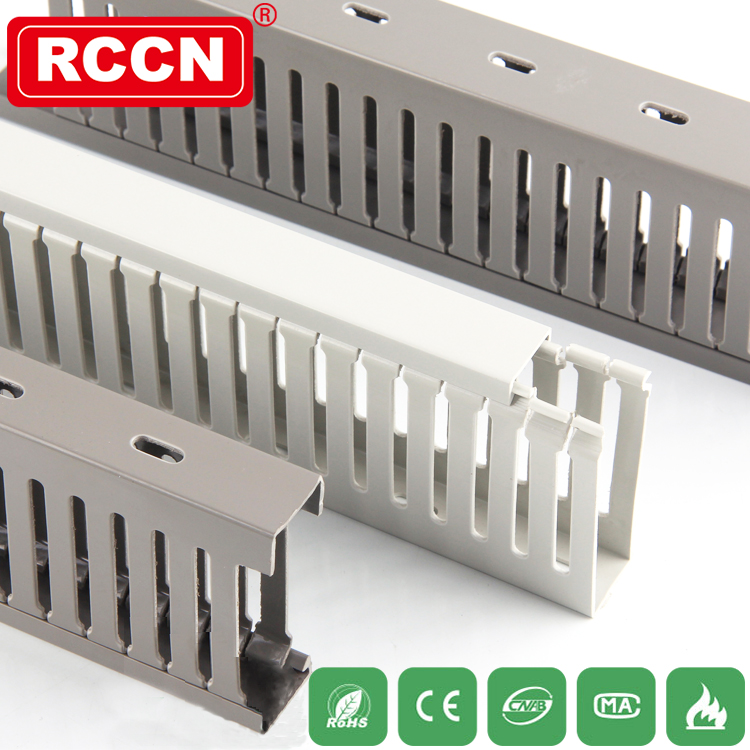

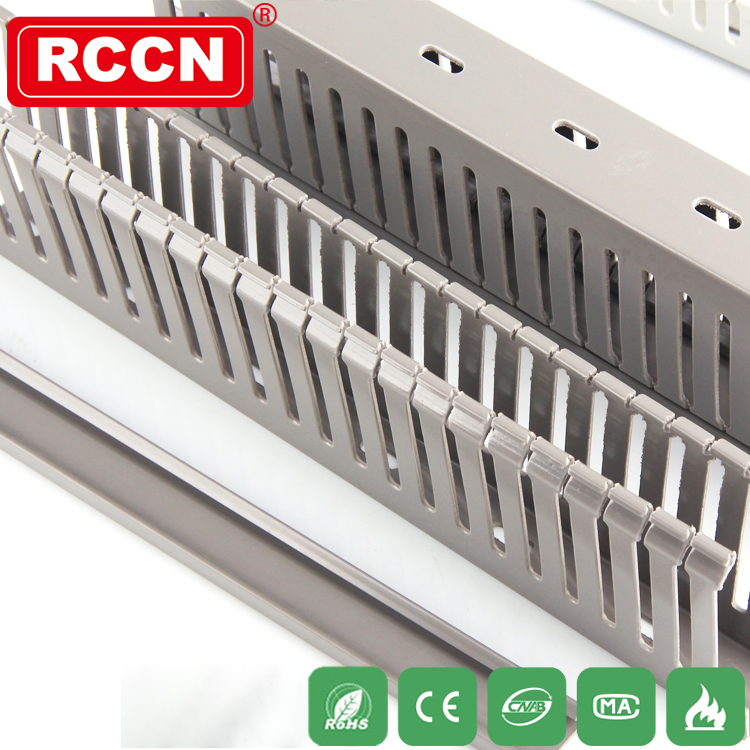

產品構造:由槽底及槽蓋組成,底槽兩側設有出線孔。
顏 ? ? ?色::灰色.乳白色.藍色.黑色（可定制其它顏色，有起訂量要求）
工作溫度 :靜態-40°C持續高溫至110°C。
使用方法:先將底槽固定,將所要配的線裝入槽內,蓋上槽蓋即可。
產品特性: 1.反扣式槽蓋與槽體設計組合後絕不脫落,且接合面平滑,不割傷手及擦損附近配線。
? ? ? ? ? ? ??2.配線槽110°C內不易斷裂,變形,變色,裝配省時便利。
? ? ? ? ? ? ? 3.出線孔低、組合容易、拆卸簡單、易于配線。
更多選擇:量大可按需求生產所需規格或定制長度.例:HVDR8080T/HF(L=1.7M)

推薦：灰色為常規庫存產品,其它顏色有起訂量要求。*交期待確認。
標準長度：2米/支

無鹵耐高溫線槽低煙無鹵線槽無鹵線槽線槽價格線槽

產品規格

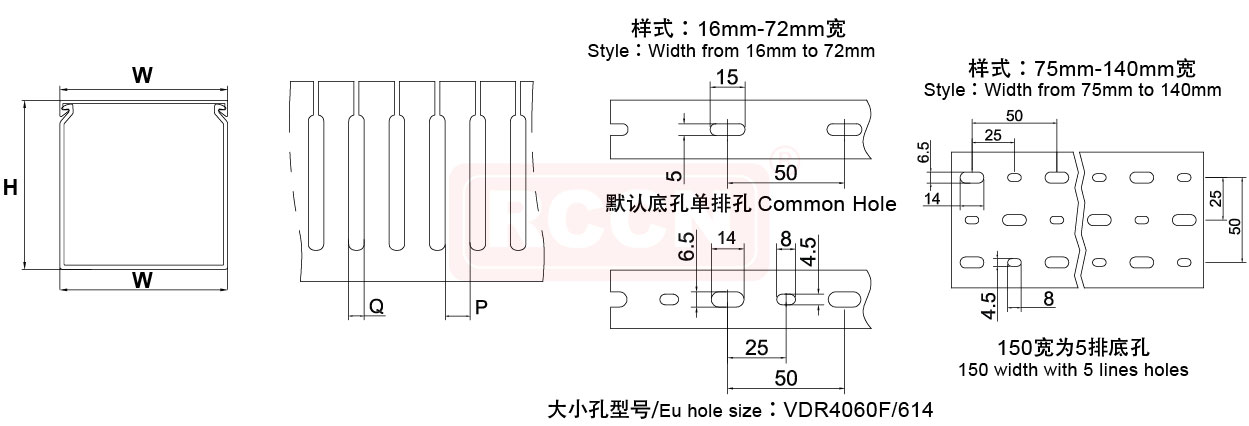

型號Item No.				寬高 WH	孔寬 Q	齒寬 P	裝箱 /M
灰色Gray	白色White	藍色Blue	黑色Black	寬高 WH	孔寬 Q	齒寬 P	裝箱 /M
HVDR1616T/HF	HVDR1616TW/HF	HVDR1616TE/HF	HVDR1616TB/HF	16*16	5	8	300M
HVDR2516T/HF	HVDR2516TW/HF	HVDR2516TE/HF	HVDR2516TB/HF	25*16	5	8	100M
HVDR1520T/HF	HVDR1520TW/HF	HVDR1520TE/HF	HVDR1520TB/HF	15*20	5	8	260M
HVDR2020T/HF	HVDR2020TW/HF	HVDR2020TE/HF	HVDR2020TB/HF	20*20	5	8	240M
HVDR4020T/HF	HVDR4020TW/HF	HVDR4020TE/HF	HVDR4020TB/HF	40*20	5	8	140M
HVDR1525T/HF	HVDR1525TW/HF	HVDR1525TE/HF	HVDR1525TB/HF	15*25	5	8	260M
*HVDR2025T/HF	HVDR2025TW/HF	HVDR2025TE/HF	HVDR2025TB/HF	20*25	5	8	200M
*HVDR2525T/HF	HVDR2525TW/HF	HVDR2525TE/HF	HVDR2525TB/HF	25*25	5	8	200M
*HVDR3025T/HF	HVDR3025TW/HF	HVDR3025TE/HF	HVDR3025TB/HF	30*25	5	8	160M
HVDR4025T/HF	HVDR4025TW/HF	HVDR4025TE/HF	HVDR4025TB/HF	40*25	5	8	100M
HVDR5025T/HF	HVDR5025TW/HF	HVDR5025TE/HF	HVDR5025TB/HF	50*25	5	8	100M
HVDR1530T/HF	HVDR1530TW/HF	HVDR1530TE/HF	HVDR1530TB/HF	15*30	5	8	180M
HVDR2030T/HF	HVDR2030TW/HF	HVDR2030TE/HF	HVDR2030TB/HF	20*30	5	8	160M
HVDR2530T/HF	HVDR2530TW/HF	HVDR2530TE/HF	HVDR2530TB/HF	25*30	5	8	160M
HVDR3030T/HF	HVDR3030TW/HF	HVDR3030TE/HF	HVDR3030TB/HF	3030	5	8	140M
HVDR4030T/HF	HVDR4030TW/HF	HVDR4030TE/HF	HVDR4030TB/HF	40*30	5	8	100M
HVDR5030T/HF	HVDR5030TW/HF	HVDR5030TE/HF	HVDR5030TB/HF	50*30	5	8	80M
HVDR6030T/HF	HVDR6030TW/HF	HVDR6030TE/HF	HVDR6030TB/HF	60*30	5	8	60M
HVDR2233T/HF	HVDR2233TW/HF	HVDR2233TE/HF	HVDR2233TB/HF	22*33	5	8	160M
HVDR3333T/HF	HVDR3333TW/HF	HVDR3333TE/HF	HVDR3333TB/HF	33*33	5	8	160M
HVDR2035T/HF	HVDR2035TW/HF	HVDR2035TE/HF	HVDR2035TB/HF	20*35	5	8	100M
HVDR3535T/HF	HVDR3535TW/HF	HVDR3535TE/HF	HVDR3535TB/HF	35*35	5	8	112M
HVDR5035T/HF	HVDR5035TW/HF	HVDR5035TE/HF	HVDR5035TB/HF	50*35	5	8	88M
HVDR2040T/HF	HVDR2040TW/HF	HVDR2040TE/HF	HVDR2040TB/HF	2040	5	8	110M
HVDR2540T/HF	HVDR2540TW/HF	HVDR2540TE/HF	HVDR2540TB/HF	25*40	5	8	112M
HVDR3540T/HF	HVDR3540TW/HF	HVDR3540TE/HF	HVDR3540TB/HF	35*40	5	8	100M
HVDR4040T/HF	HVDR4040TW/HF	HVDR4040TE/HF	HVDR4040TB/HF	40*40	5	8	100M
HVDR6040T/HF	HVDR6040TW/HF	HVDR6040TE/HF	HVDR6040TB/HF	60*40	5	8	68M
HVDR8040T/HF	HVDR8040TW/HF	HVDR8040TE/HF	HVDR8040TB/HF	80*40	5	8	48M
HVDR10040T/HF	HVDR10040TW/HF	HVDR10040TE/HF	HVDR10040TB/HF	100*40	5	8	32M
HVDR12040T/HF	HVDR12040TW/HF	HVDR12040TE/HF	HVDR12040TB/HF	120*40	5	8	/
HVDR2545T/HF	HVDR2545TW/HF	HVDR2545TE/HF	HVDR2545TB/HF	25*45	5	8	104M
HVDR3345T/HF	HVDR3345TW/HF	HVDR3345TE/HF	HVDR3345TB/HF	33*45	5	8	108M
HVDR4545T/HF	HVDR4545TW/HF	HVDR4545TE/HF	HVDR4545TB/HF	45*45	5	8	72M
HVDR6545T/HF	HVDR6545TW/HF	HVDR6545TE/HF	HVDR6545TB/HF	65*45	5	8	56M
HVDR2050T/HF	HVDR2050TW/HF	HVDR2050TE/HF	HVDR2050TB/HF	20*50	5	8	100M
HVDR2550T/HF	HVDR2550TW/HF	HVDR2550TE/HF	HVDR2550TB/HF	25*50	5	8	100M
HVDR3050T/HF	HVDR3050TW/HF	HVDR3050TE/HF	HVDR3050TB/HF	30*50	5	8	84M
HVDR3550T/HF	HVDR3550TW/HF	HVDR3550TE/HF	HVDR3550TB/HF	35*50	5	8	80M
HVDR4050T/HF	HVDR4050TW/HF	HVDR4050TE/HF	HVDR4050TB/HF	40*50	5	8	68M
HVDR4550T/HF	HVDR4550TW/HF	HVDR4550TE/HF	HVDR4550TB/HF	45*50	5	8	60M
HVDR5050T/HF	HVDR5050W/HF	HVDR5050TE/HF	HVDR5050TB/HF	50*50	5	8	60M
HVDR5550T/HF	HVDR5550W/HF	HVDR5550TE/HF	HVDR5550TB/HF	50*50	5	8	48M
HVDR6050T/HF	HVDR6050TW/HF	HVDR6050TE/HF	HVDR6050TB/HF	60*50	5	8	48M
HVDR7550T/HF	HVDR7550TW/HF	HVDR7550TE/HF	HVDR7550TB/HF	75*50	5	8	40M
HVDR8050T/HF	HVDR8050TW/HF	HVDR8050TE/HF	HVDR8050TB/HF	80*50	5	8	40M
HVDR10050T/HF	HVDR10050TW/HF	HVDR10050TE/HF	HVDR10050TB/HF	100*50	5	8	26M
HVDR12555T/HF	HVDR12555TW/HF	HVDR12555TE/HF	HVDR12555TB/HF	125*55	5	8	20M
*HVDR2060T/HF	HVDR2060TW/HF	HVDR2060TE/HF	HVDR2060TB/HF	20*60	5	8	100M
HVDR2560T/HF	HVDR2560TW/HF	HVDR2560TE/HF	HVDR2560TB/HF	25*60	5	8	100M
HVDR3060T/HF	HVDR3060TW/HF	HVDR3060TE/HF	HVDR3060TB/HF	30*60	5	8	80M
HVDR3560T/HF	HVDR3560TW/HF	HVDR3560TE/HF	HVDR3560TB/HF	35*60	5	8	78M
HVDR4060T/HF	HVDR4060TW/HF	HVDR4060TE/HF	HVDR4060TB/HF	40*60	5	8	60M
HVDR4560T/HF	HVDR4560TW/HF	HVDR4560TE/HF	HVDR4560TB/HF	45*60	5	8	30M
HVDR5060T/HF	HVDR5060TW/HF	HVDR5060TE/HF	HVDR5060TB/HF	50*60	5	8	60M
HVDR6060T/HF	HVDR6060TW/HF	HVDR6060TE/HF	HVDR6060TB/HF	60*60	5	8	48M
HVDR8060T/HF	HVDR8060TW/HF	HVDR8060TE/HF	HVDR8060TB/HF	80*60	5	8	36M
HVDR10060T/HF	HVDR10060TW/HF	HVDR10060TE/HF	HVDR10060TB/HF	100*60	5	8	28M
HVDR11060T/HF	HVDR11060TW/HF	HVDR11060TE/HF	HVDR11060TB/HF	110*60	5	8	48M
*HVDR12060T/HF	HVDR12060TW/HF	HVDR12060TE/HF	HVDR12060TB/HF	120*60	5	8	48M
HVDR15060T/HF	HVDR15060TW/HF	HVDR15060TE/HF	HVDR15060TB/HF	150*60	5	8	/
HVDR2565T/HF	HVDR2565TW/HF	HVDR2565TE/HF	HVDR2565TB/HF	25*65	5	8	96M
HVDR3365T/HF	HVDR3365TW/HF	HVDR3365TE/HF	HVDR3365TB/HF	33*65	5	8	80M
HVDR4565T/HF	HVDR4565TW/HF	HVDR4565TE/HF	HVDR4565TB/HF	45*65	5	8	52M
HVDR6565T/HF	HVDR6565TW/HF	HVDR6565TE/HF	HVDR6565TB/HF	65*65	5	8	44M
HVDR7265T/HF	HVDR7265TW/HF	HVDR7265TE/HF	HVDR7265TB/HF	72*65	5	8	42M
HVDR5075T/HF	HVDR5075TW/HF	HVDR5075TE/HF	HVDR5075TB/HF	50*75	5	8	42M
HVDR7575T/HF	HVDR7575TW/HF	HVDR7575TE/HF	HVDR7575TB/HF	75*75	5	8	40M
HVDR10075T/HF	HVDR10075TW/HF	HVDR10075TE/HF	HVDR10075TB/HF	100*75	5	8	24M
HVDR2580T/HF	HVDR2580TW/HF	HVDR2580TE/HF	HVDR2580TB/HF	25*80	5	8	72M
HVDR3080T/HF	HVDR3080TW/HF	HVDR3080TE/HF	HVDR3080TB/HF	30*80	5	8	56M
HVDR3580T/HF	HVDR3580TW/HF	HVDR3580TE/HF	HVDR3580TB/HF	35*80	5	8	56M
HVDR4080T/HF	HVDR4080TW/HF	HVDR4080TE/HF	HVDR4080TB/HF	40*80	5	8	48M
HVDR4580T/HF	HVDR4580TW/HF	HVDR4580TE/HF	HVDR4580TB/HF	45*80	5	8	40M
HVDR5080T/HF	HVDR5080TW/HF	HVDR5080TE/HF	HVDR5080TB/HF	50*80	5	8	40M
HVDR5580T/HF	HVDR5580TW/HF	HVDR5580TE/HF	HVDR5580TB/HF	55*80	5	8	32M
HVDR6080T/HF	HVDR6080TW/HF	HVDR6080TE/HF	HVDR6080TB/HF	60*80	5	8	32M
HVDR8080T/HF	HVDR8080TW/HF	HVDR8080TE/HF	HVDR8080TB/HF	80*80	5	8	24M
HVDR10080T/HF	HVDR10080TW/HF	HVDR10080TE/HF	HVDR10080TB/HF	100*80	5	8	24M
HVDR12080T/HF	HVDR12080TW/HF	HVDR12080TE/HF	HVDR12080TB/HF	120*80	5	8	16M
HVDR14080T/HF	HVDR14080TW/HF	HVDR14080TE/HF	HVDR14080TB/HF	140*80	5	8	16M
*HVDR25100T/HF	HVDR25100TW/HF	HVDR25100TE/HF	HVDR25100TB/HF	25*100	5	8	60M
HVDR33100T/HF	HVDR33100TW/HF	HVDR33100TE/HF	HVDR33100TB/HF	33*100	5	8	44M
HVDR40100T/HF	HVDR40100TW/HF	HVDR40100TE/HF	HVDR40100TB/HF	40*100	5	8	40M
HVDR50100T/HF	HVDR50100TW/HF	HVDR50100TE/HF	HVDR50100TB/HF	50*100	5	8	40M
HVDR60100T/HF	HVDR60100TW/HF	HVDR60100TE/HF	HVDR60100TB/HF	60*100	5	8	32M
HVDR70100T/HF	HVDR70100TW/HF	HVDR70100TE/HF	HVDR70100TB/HF	70*100	5	8	24M
HVDR75100T/HF	HVDR75100TW/HF	HVDR75100TE/HF	HVDR75100TB/HF	75*100	5	8	24M
HVDR80100T/HF	HVDR80100TW/HF	HVDR80100TE/HF	HVDR80100TB/HF	80*100	5	8	24M
HVDR100100T/HF	HVDR100100TW/HF	HVDR100100TE/HF	HVDR100100TB/HF	100*100	5	8	24M
HVDR120100T/HF	HVDR120100TW/HF	HVDR120100TE/HF	HVDR120100TB/HF	120*100	5	8	16M
HVDR150100T/HF	HVDR150100TW/HF	HVDR150100TE/HF	HVDR150100TB/HF	150*100	5	8	/
HVDR100130T/HF	HVDR100130TW/HF	HVDR100130TE/HF	HVDR100130TB/HF	150*130	5	8	/
HVDR200100T/HF	HVDR200100TW/HF	HVDR200100TE/HF	HVDR200100TB/HF	200*100	5	8	16M
HVDR200150T/HF	HVDR200150TW/HF	HVDR200150TE/HF	HVDR200150TB/HF	200*150	5	8	/
