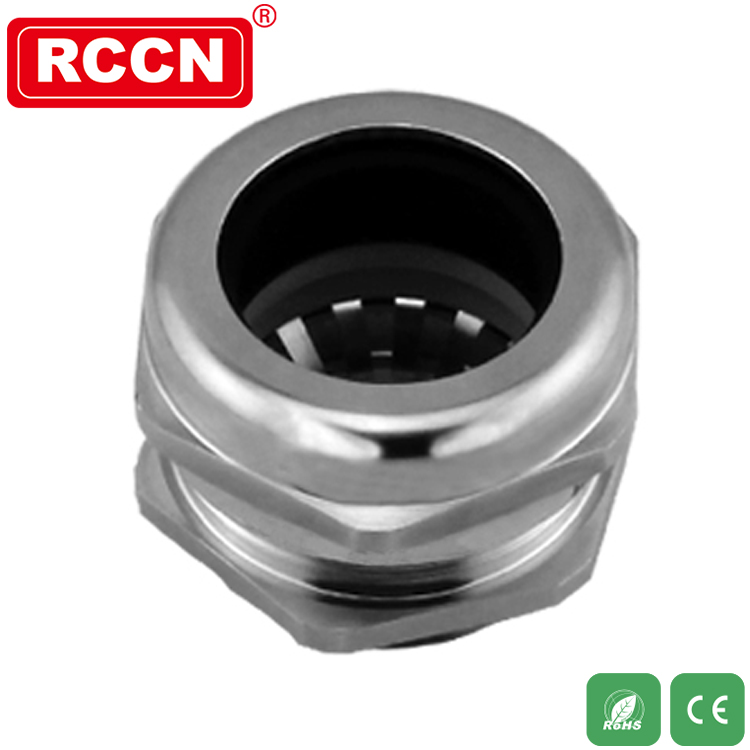

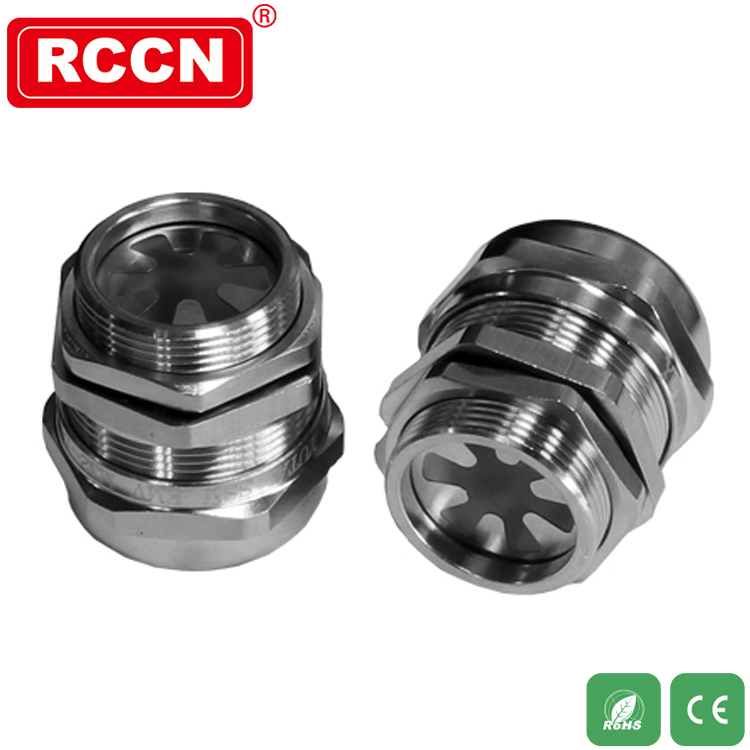

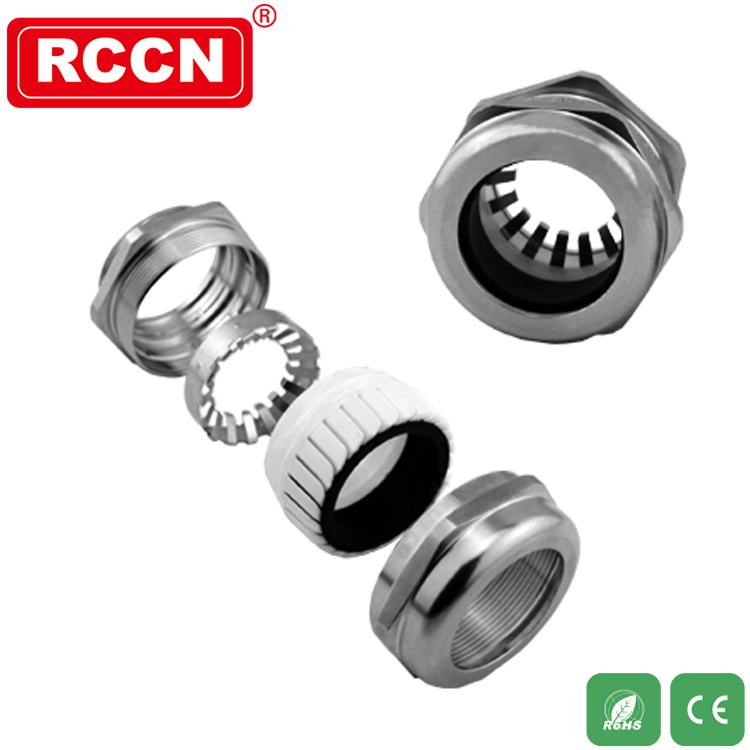

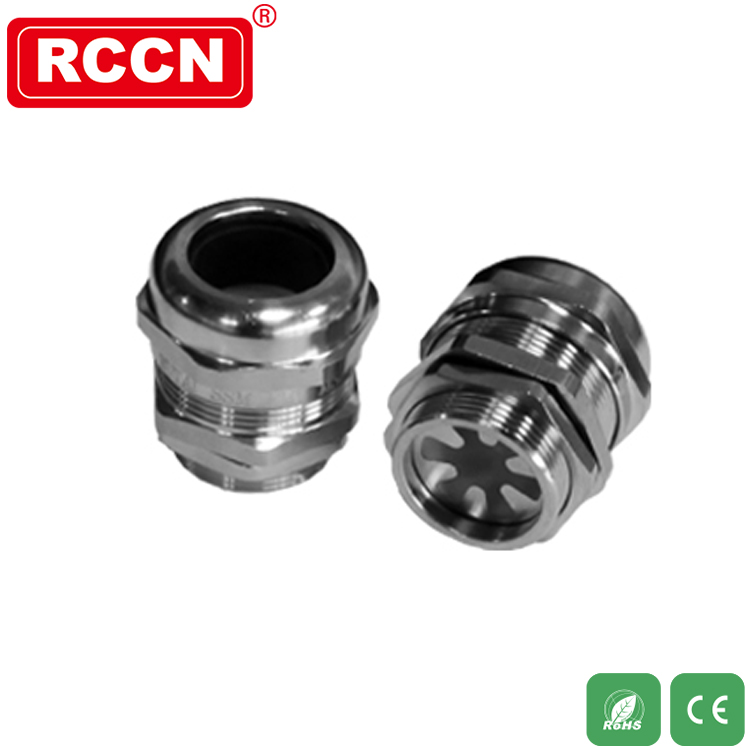

材 ? ?料：外部金屬為不銹鋼304 ,內部芯套為尼龍，密封件材料為改性橡膠
產品特性：在使用隔離線電纜時，可使低壓電磁波降低減弱，
防護等級：在規定的卡口范圍之內，并使用合適的〇型密封圈，防護等級可以達到IP68
工作溫度：-40℃到100℃ ,短時間可以達到120℃
注：SSM/EMC1適用形式A的穿線方式；SSM/EMC適用形式A，形式B的穿線方式。
| 型號 Item?No. | 螺紋規格 Thread?Dimension | 卡口范圍 Clamping?range? mm | 螺紋外徑 ?AG? mm | 螺紋長度? GL? mm | 高度 H? mm | 扳手尺寸 Wrench?size? mm | 穿線方式? assembly?type | 包裝? Std.Pkg? PCS |
| BXG-M-EMC 公制螺紋?Metric?Thread | ||||||||
| BXG-M12x1.5EMC-6.5 | M12x1.5 | 3-6.5 | 12 | 6 | 19 | 14 | A/B | 50 |
| BXG-M12x1.5EMC1-8 | M12x1.5 | 4-8 | 12 | 6 | 22 | 20 | A | 50 |
| BXG-M16x1.5EMC-8 | M16x1.5 | 4-8 | 16 | 7 | 21 | 17/18 | A/B | 50 |
| BXG-M16x1.5EMC1-10 | M16x1.5 | 5-10 | 16 | 7 | 24 | 22 | A | 50 |
| BXG-M20x1.5EMC-12 | M20x1.5 | 7-12 | 20 | 7 | 23.5 | 22 | A/B | 50 |
| BXG-M20x1.5EMC1-14 | M20x1.5 | 9-14 | 20 | 7 | 27 | 26 | A | 50 |
| BXG-M25x1.5EMC-16 | M25x1.5 | 11-16 | 25 | 7 | 24.5 | 28 | A/B | 25 |
| BXG-M25x1.5EMC1-18 | M25x1.5 | 13-18 | 25 | 7 | 28.5 | 30 | A | 25 |
| BXG-M32x1.5EMC-21 | M32x1.5 | 15-21 | 32 | 8 | 28 | 36 | A/B | 20 |
| BXG-M32x1.5EMC1-24 | M32xl.5 | 17-24 | 32 | 8 | 33 | 38 | A | 20 |
| BXG-M40x1.5EMC-30 | M40xl.5 | 21-30 | 40 | 9 | 38 | 45 | A/B | 10 |
| BXG-M40x1.5EMC1-32 | M40xl.5 | 22-32 | 40 | 9 | 34 | 50 | A | 10 |
| BXG-M50x1.5EMC-38 | M50x1.5 | 30-38 | 50 | 9 | 40 | 55/58 | A/B | 10 |
| BXG-M50x1.5EMC1-40 | M50x1.5 | 30-40 | 50 | 9 | 37 | 58 | A | 10 |
| BXG-M63x1.5EMC-44 | M63x1.5 | 37-44 | 63 | 10 | 41.5 | 65/70 | A/B | 5 |
| BXG-M63x1.5EMC1-53 | M63x1.5 | 38-53 | 63 | 10 | 48 | 75 | A | 5 |
| BXG-PG-EMC德制螺紋?PG?Thread | ||||||||
| BXG/EMV.SC-PG7-6.5 | PG7 | 3-6.5 | 12.5 | 6 | 19 | 14 | A/B | 50 |
| BXG-PG7/EMC1-8 | PG7 | 4-8 | 12.5 | 6 | 22 | 20 | A | 50 |
| BXG-PG9EMC-8 | PG9 | 4-8 | 15.2 | 7 | 21 | 17 | A/B | 50 |
| BXG-PG9EMC1-10 | PG9 | 5-10 | 15.2 | 7 | 24 | 22 | A | 50 |
| BXG-PG11EMC-8 | PG11 | 4-8 | 18.6 | 7 | 21 | 17/20 | A/B | 50 |
| BXG-PG11EMC1-10 | PG11 | 5-10 | 18.6 | 7 | 24 | 22 | A | 50 |
| BXG-PG13.5EMC-12 | PG13.5 | 7-12 | 20.4 | 7 | 23.5 | 22 | A/B | 50 |
| BXG-PG13.5EMC1-14 | PG13.5 | 9-14 | 20.4 | 7 | 27 | 26 | A | 50 |
| BXG-PG16EMC-12 | PG16 | 7-12 | 22.5 | 7 | 23.5 | 22/24 | A/B | 50 |
| BXG-PG16EMC1-14 | PG16 | 9-14 | 22.5 | 7 | 27 | 26 | A | 50 |
| BXG-PG21EMC-16 | PG21 | 11-16 | 28.3 | 7 | 24.5 | 28/30 | A/B | 25 |
| BXG-PG21EMC1-18 | PG21 | 13-18 | 28.3 | 7 | 28.5 | 30 | A | 25 |
| BXG-PG29EMC-21 | PG29 | 15-21 | 37 | 8 | 28 | 36/40 | A/B | 20 |
| BXG-PG29EMC1-24 | PG29 | 17-24 | 37 | 8 | 33 | 38/40 | A | 20 |
| BXG-PG36EMC-30 | PG36 | 21-30 | 47 | 9 | 38 | 45/50 | A/B | 10 |
| BXG-PG36EMC1-32 | PG36 | 22-32 | 47 | 9 | 34 | 50 | A | 10 |
| BXG-PG42EMC-38 | PG42 | 30-38 | 54 | 9 | 40 | 58 | A/B | 10 |
| BXG-PG42EMC1-40 | PG42 | 30-40 | 54 | 9 | 37 | 58 | A | 10 |
| BXG-PG48EMC-44 | PG48 | 37-44 | 59.3 | 10 | 41.5 | 65 | A/B | 5 |
| BXG-PG48EMC1-53 | PG48 | 38-53 | 59.3 | 10 | 48 | 75 | A | 5 |
