日成防火級尼龍扎線帶 GV0

材質:采用UL合格認證之進口防火尼龍66(NYLON66)制成,
防火等級:94V-0.
特點:無鋒利部位；備有讓指頭握緊的末端；扎帶末端設計成易入式；
顏色:標準品乳白色，另備黑色.
特性:品質優良,捆扎后靜態-40℃耐熱至85℃不易斷裂松開.
使用方法:將扎帶末端穿過帶孔一拉,即可牢牢扣住.
說明：包裝有100PCS或1000PCS

扎帶尼龍扎帶

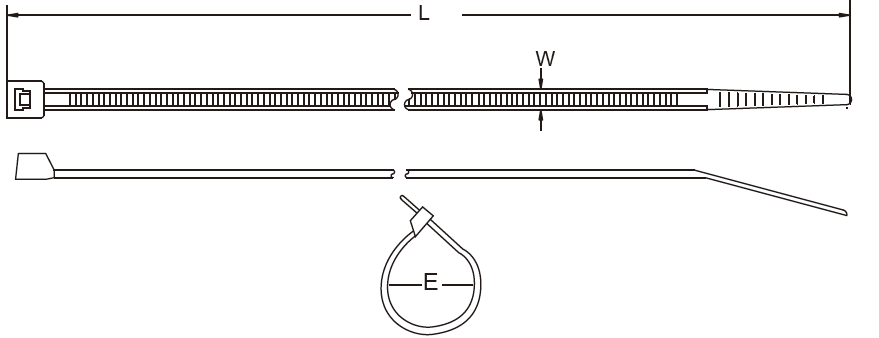

產品規格

規格乳白色 NATURAL ?	規格乳白色NATURAL	規格包裝黑色 BLACK	規格包裝黑色 BLACK	長度	寬度	最大束線徑 ?	拉力公斤
1000pcs	100pcs	1000pcs	100pcs	Length mm	width mm	Max Bundle Dia mm	Min.Loop Tensile Strength kg(lbs)
G80MV0/K??	G80MV0	G80MBV0/K	G80MBV0	80	2.4	15	8.0(18）
G100MV0/K	G100MV0	G100MBV0/K	G100MBV0	100	2.5	22	8.1(18)
G120MV0/K??	G120MV0	G120MBV0/K	G120MBV0	120	2.5	30	8.1(18)
G140MV0/K	G140MV0	G140MBV0/K	G140MBV0	140	2.5	33	8.1(18)
G150MV0/K	G150MV0	G150MBV0/K	G150MBV0	150	2.5	35	8.1(18)
G160MV0/K	G160MV0	G160MBV0/K	G160MBV0	160	2.5	38	8.1(18)
G120IV0/K	G120IV0	G120IBV0/K	G120IBV0	120	3.6	30	18.2(40)
G150IV0/K	G150IV0	G150IBV0/K	G150IBV0	150	3.6	35	18.2(40)
G180IV0/K?	G180IV0	G180IBV0/K	G180IBV0	180	3.6	44	18.2(40)
G200IV0/K	G200IV0	G200IBV0/K	G200IBV0	200	3.6	52	18.2(40)
G215IV0/K	G215IV0	G215IBV0/K	G215IBV0	215	3.6	56	18.2(40)
G250IV0/K??	G250IV0	G250IBV0/K	G250IBV0	250	3.60	65	18.2(40)
G300IV0/K	G300IV0	G300IBV0/K	G300IBV0	300	3.6	76	18.2(40)
G370IV0/K	G370IV0	G370IBV0/K	G370IBV0	370	3.6	102	18.2(40)
G190STV0/K??	G190STV0	G190STBV0/K	G190STBV0	190	4.8	46	22.2(50)
G200STV0/K	G200STV0	G200STBV0/K	G200STBV0	200	4.8	50	22.2(50)
G250STV0/K	G250STV0	G250STBV0/K	G250STBV0	250	4.8	60	22.2(50)
G300STV0/K??	G300STV0	G300STBV0/K	G300STBV0	300	4.8	76	22.2(50)
G370STV0/K	G370STV0	?G370STBV0/K	G370STBV0	370	4.8	102	22.2(50)
G390STV0/K	G390STV0	?G390STBV0/K	G390STBV0	390	4.8	105	22.2(50)
?	G430STV0	?	G430STBV0	430	4.8	110	22.2(50)
?	G450STV0	?	G450STBV0	450	4.8	116	22.2(50)
?	G530STV0	?	G530STBV0	530	4.8	140	22.2(50)
?	G550STV0	?	G550STBV0	550	4.8	145	22.2(50)
?	G635STV0	?	G635STBV0	635	4.8	190	22.2(50)
?	G685STV0	?	G685STBV0	685	4.8	205	22.2(50)
??	G150HDV0	?	G150HDBV0	150	7.6	33	54.4(120)
?	G200HDV0	?	G200HDBV0	200	7.6	50	54.4(120)
?	G250HDV0	?	G250HDBV0	250	7.6	65	54.4(120)
?	G300HDV0	?	G300HDBV0	300	7.6	76	54.4(120)
?	G370HDV0	?	G370HDBV0	370	7.6	102	54.4(120)
NEW	G380HDSV0	?	G380HDSBV0	380	7.6	110	54.4(120)
?	G430HDSV0	?	G430HDSBV0	430	7.6	125	54.4(120)
?	G450HDSV0	?	G450HDSBV0	450	7.6	132	54.4(120)
NEW	G500HDSV0	?	G500HDSBV0	500	7.6	147	54.4(120)
?	G530HDSV0	?	G530HDSBV0	530	7.6	140	54.4(120)
?	G610HDSV0	?	G610HDSBV0	610	7.6	180	54.4(120)
?	G430HDV0	?	G430HDBV0	430	9.0	110	79.4(175)
?	G450HDV0	?	G450HDBV0	450	9.0	120	79.4(175)
?	G530HDV0	?	G530HDBV0	530	9.0	140	79.4(175)
?	G610HDV0	?	G610HDBV0	610	9.0	187	79.4(175)
?	G710HDV0	?	G710HDBV0	710	9.0	190	79.4(175)
?	G780HDV0	?	G780HDBV0	780	9.0	228	79.4(175)
?	G830HDV0	?	G830HDBV0	830	9.0	239	79.4(175)
?	G920HDV0	?	G920HDBV0	920	9.0	263	79.4(175)
